Gear Racks for Sliding Gates: Complete Engineering & Selection Guide for UK Industrial & Residential Applications
From Module M4 A3 steel pinions to glass-fibre nylon helical racks — every dimension, material, and application scenario covered for UK installers and procurement engineers.
In automated gate systems, the mechanical drive components operating beneath the surface determine everything that matters commercially and technically: cycle reliability, motor service life, noise characteristics, resistance to the British weather, and the total cost of ownership over a decade or more of daily operation. Among all the components in a sliding gate system, gear racks for sliding gates occupy the most mechanically critical position. They are the permanent interface between the electric drive motor and the physical motion of the gate leaf — converting rotational torque into controlled, repeatable linear travel, thousands of times a year, through frost, rain, UV exposure, and the inevitable accumulation of road grit and debris that characterises real-world UK installation environments.
Having worked in gear power transmission engineering for well over eighteen years — with a significant portion of that time spent directly supporting gate automation installers, access control integrators, and facilities management organisations across England, Scotland, and Wales — the patterns of failure and success in sliding gate rack and pinion selection are extremely well-established. Poor tooth profile accuracy causes premature backlash. Under-specified surface hardness leads to tooth-flank fatigue within two or three seasons. Incorrect module sizing generates motor overloading, nuisance tripping, and ultimately burnt-out windings. Conversely, a correctly specified, properly finished rack and pinion assembly installed on a well-adjusted gate runs silently, efficiently, and entirely without attention for eight to twelve years under normal residential duty.
This guide exists to make that correct specification straightforward — whether you are a gate installation contractor pricing a residential job in Surrey, a procurement manager sourcing components for a commercial perimeter gate project in Birmingham, or a facilities engineer responsible for multi-site access control infrastructure across Northern England. The information here reflects current production specifications, real installation experience, and the specific climate and market conditions of the United Kingdom.

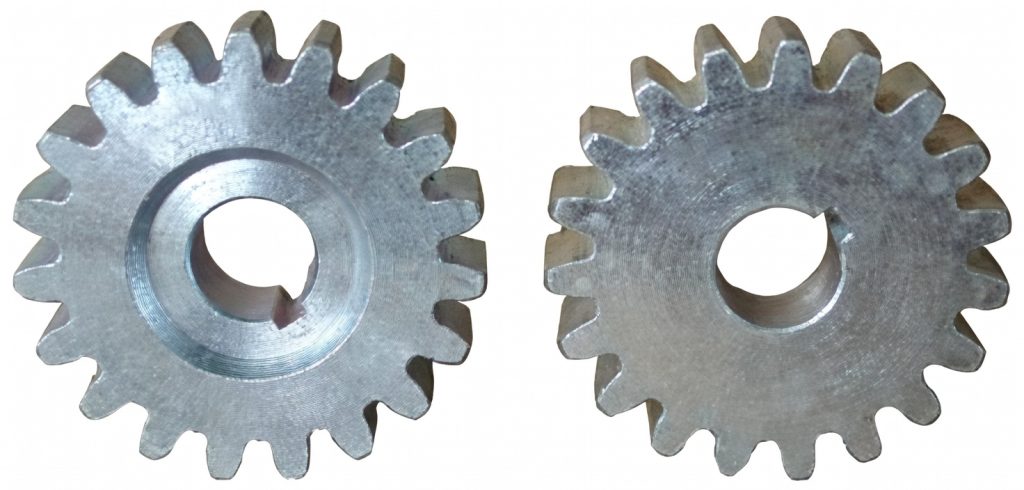

Steel Pinion for Sliding Gate Motor — Module M4, A3 Carbon Steel · Ever Power Precision Gear Manufacturing
Specify the right rack system for your project — our engineering team responds within 24 hours.
What Is a Gear Rack for a Sliding Gate — and Why Does Specification Quality Matter So Much?
A gear rack for a sliding gate is a toothed linear bar — manufactured from steel, engineering-grade nylon, or stainless steel depending on the application — that is fixed along the lower rail of the gate leaf. A matching pinion gear, attached to the motor’s output shaft, engages the rack teeth. As the motor rotates, the pinion rolls along the rack, or alternatively drives the rack in translation, producing smooth, controlled linear motion along the gate’s travel path. The mechanical principle is elegantly simple, but the engineering tolerances involved are genuinely demanding.
A poorly manufactured rack — even one that fits in the motor housing and appears dimensionally acceptable — will present problems within months. Tooth profile inaccuracy above DIN 8 class creates point contact loading rather than line contact, concentrating stress at the tooth root and accelerating fatigue crack propagation. Inadequate surface hardness (below approximately 50 HRC on the flank of a steel rack) means that the abrasive particles carried in the grease become embedded in the softer tooth surface, creating a lapping effect that progressively increases backlash and generates the characteristic grinding noise that experienced gate engineers immediately associate with a worn drive train.
For UK gate automation professionals, the consequences of premature rack wear go well beyond the cost of the component itself. Every return visit to a residential client, every warranty claim from a facilities manager, every gate held open because the motor has stalled, represents a cost in labour time, vehicle mileage, and reputation that dwarfs the price difference between a mediocre rack and a properly engineered one. Specifying correctly matters commercially, not just technically.
M4 Steel Pinion — Dimensional Reference Drawing
Dimensional accuracy underpins everything. The drawing below shows the critical parameters for our standard M4 steel pinion: bore diameter, tooth count, face width, and hub protrusion. All of these must be cross-referenced against the specific motor shaft specification before any order is finalised. Our engineering team can advise on compatibility with the most common UK gate motor models if you contact us with the motor reference number.

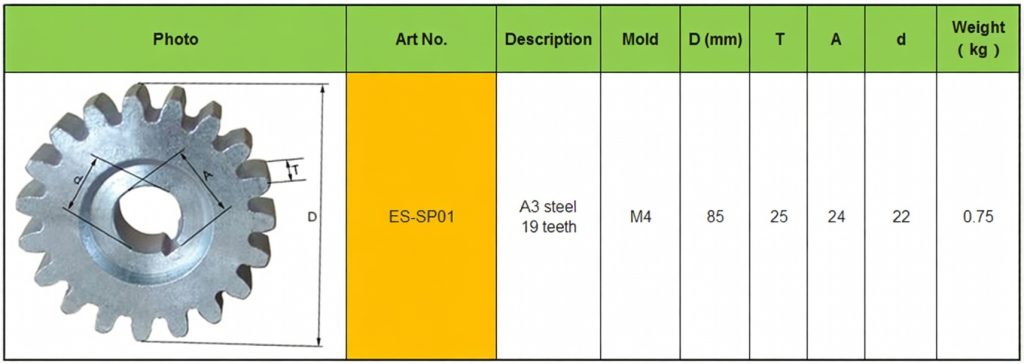

M4 Module Steel Pinion Dimension Diagram — reference drawing; custom bore, keyway, and face-width modifications available on request.
Material Selection: Steel vs. Nylon Rack & Pinion for UK Gate Applications
A3 Carbon Steel (S235) — Standard Grade
A3 steel, equivalent to European EN S235, is the standard material for our M4 module steel pinions and straight-cut racks. It provides an excellent balance of tensile strength, machinability, and cost-efficiency. More importantly, it responds superbly to surface hardening treatments — tooth flanks can be case-hardened to 58–62 HRC while the core remains tough and ductile, which is exactly the property combination required for components under cyclic contact stress. In the UK’s persistently wet climate, electroplated zinc plus powder-coat finishing is strongly recommended to achieve the salt-spray resistance values needed for outdoor installation.
45# / 40Cr Alloy Steel — Heavy-Duty Grade
For gates in the 800 kg to 2,000 kg+ weight range — common at distribution centres, port access points, secure facilities, and large industrial perimeters — alloy steel grades including 45# and 40Cr provide significantly greater fatigue strength and post-heat-treatment hardness. These materials are routinely specified on projects where duty cycles exceed 80 operations per day and where extended maintenance intervals are a contractual requirement. They are the correct choice for security integrators working on critical national infrastructure, MoD-adjacent facilities, or any site where gate failure carries operational or safety consequences beyond ordinary inconvenience.
PA66-GF30 Engineering Nylon — Noise-Priority Grade
Glass-fibre reinforced nylon (PA66-GF30) rack and pinion assemblies have become an increasingly popular specification for residential estate gates and light commercial applications where operating noise is a primary concern. Nylon is inherently self-lubricating, completely immune to corrosion, and produces minimal mechanical noise — a meaningful advantage in residential settings where gate operation at 06:30 or 23:00 is a routine occurrence. The helical tooth variant (helix angle 19° 31′ 42”) provides smoother engagement and eliminates the characteristic ‘click’ of straight-cut racks under load. Suitable for gate leaf weights up to approximately 500 kg with an appropriate duty cycle rating.
Technical Specifications — Gear Rack & Pinion Reference Table
The table below provides a structured overview of the principal technical parameters for each material and module combination. These values represent standard production configurations; custom modules, non-standard lengths, alternative bore geometries, and specialised surface treatments are all available on request for OEM and bespoke UK project requirements. All dimensions in millimetres unless otherwise stated.
Why These Gear Racks Consistently Outperform Generic Alternatives
🎯
Tight Dimensional Tolerances
Machined to DIN 6 accuracy class or better, delivering genuine backlash values under 0.10 mm at M4. This precision directly reduces motor current variation, eliminates audible ‘clunking’ under reversal, and extends both motor and rack service life by reducing impact loading at each meshing cycle.
🌧
British Climate-Ready Finishing
Standard zinc electroplating combined with optional epoxy powder-coat top layer achieves salt-spray test resistance exceeding 500 hours per ISO 9227. This is particularly relevant for coastal installations along the South Coast, in Cornwall, along the Firth of Forth, and on the Welsh coastline where marine-grade corrosion protection is not optional — it is the minimum acceptable specification.
🔗
Motor-Brand Agnostic Design
M4 pinions are dimensionally compatible with the most widely installed gate motor brands in the UK market — FAAC, BFT, CAME, Nice, and Gibidi — without requiring adapter plates or spacers in standard configurations. This broad compatibility simplifies stock management for multi-brand installation contractors and reduces the risk of ordering errors on site.
📋
Full Batch Traceability
Every shipment includes a production process report, dimensional inspection records, and surface treatment certificates. This documentation package satisfies the quality audit requirements increasingly imposed by UK facilities compliance managers at NHS Trusts, local authority portfolios, and privately managed commercial estates where component traceability is a contractual obligation.
✏
No-Drawing Custom Service
Don’t have engineering drawings for a replacement part? Send us a physical sample or clear photographs with key measurements, and our engineering team will reverse-engineer the profile, create a complete drawing for your approval, and proceed to production. This is a heavily used service among UK facilities managers responsible for legacy gate systems where the original supplier no longer trades or supports the product.
⚡
24-Hour Quote Turnaround
Standard enquiries receive a full technical and commercial quotation within one business day. Urgent requirements can be escalated for same-day response — simply flag the urgency in your email subject line. UK trade clients with established accounts receive dedicated pricing and priority scheduling. All quotes are issued in GBP, with no currency fluctuation risk to manage on your side of the purchase order.
Application Scenarios Across UK Sectors
The demand for sliding gate rack and pinion systems across the United Kingdom spans an exceptionally wide range of gate weights, duty cycles, environmental exposures, and functional requirements. Understanding which application scenario your project falls into is the starting point for correct specification. In residential settings — private driveways in commuter belt areas of Surrey, Hertfordshire, Cheshire, and Stirlingshire, for example — the engineering challenge centres on achieving low operating noise, reliable low-temperature performance, and a surface finish that withstands the wet, gritty conditions of a British winter without corroding within three or four years. M4 module nylon or zinc-treated steel racks comfortably meet these requirements, and the gate contractor’s primary job is ensuring clean tooth engagement on installation and a clean rack channel at every service visit.
Commercial and industrial applications across England and Scotland present a fundamentally different engineering brief. Business parks with access control-linked barriers, NHS site perimeters, school and university campuses, supermarket distribution centres, and waste management facilities routinely operate gates at duty cycles ten to twenty times higher than a residential driveway. At 80 to 150 cycles per day — which is entirely normal for a busy commercial access point — the cumulative mechanical work done on the rack teeth over a twelve-month period is enormous, and only properly hardened, accurately profiled steel racks will maintain acceptable tooth geometry beyond the first two or three years of operation.
🏠
Residential Driveways
M4 nylon or zinc-plated steel; low-noise priority; compatible with FAAC 740, BFT DEIMOS, Nice RUN series motors used across UK residential installs.
🏛
Business Parks & Office Campuses
M4–M6 steel, galvanised finish; medium-to-high duty cycles; intercommunication and access control integration compatibility essential.
🏭
Industrial & Logistics Facilities
Heavy M6 alloy steel; gate weights 800–2,000 kg+; rated 100+ cycles/day; black oxide or hot-dip galvanised finishes for outdoor exposed sites.
🏥
Schools & Healthcare Sites
Helical nylon or noise-dampened steel racks; safety-critical applications; DDA compliance; suitable for safeguarding-sensitive environments.
⚓
Coastal & Marine Environments
316L stainless steel or PA66-GF30 nylon; salt-air corrosion the primary design driver; EN ISO 1461 hot-dip galvanised steel available for extreme exposures.
🔣
Food & Pharmaceutical
316L stainless or food-grade nylon; hygiene-area gating requirements; compliant with UK Food Standards Agency and GMP guidelines for production zone access.
Customer Success: Major Rack Replacement Programme, West Yorkshire Logistics Campus
Industrial Application Case Study — Northern England
14-Gate Drive System Overhaul at 45-Acre Distribution Campus, Leeds
A gate automation contractor based in Leeds was commissioned to replace the sliding gate drive assemblies across a 45-acre distribution and warehousing campus in West Yorkshire. The site ran fourteen individual sliding gates, with leaf weights ranging from 650 kg to 1,450 kg and duty cycle ratings between 80 and 140 operations per day. The incumbent steel racks — sourced from a European supplier approximately four years previously — had reached end of mechanical life. Visual inspection revealed tooth-flank pitting consistent with inadequate surface hardness, localised corrosion at the rack channel mounting faces, and intermittent motor stall events under the elevated current demand of winter operation, when grease viscosity increases significantly.
Following a technical review, the project specification settled on Ever Power M6 alloy steel racks with black oxide finish, paired with custom bore pinions machined to match the exact shaft dimensions of the existing motor drives — avoiding the cost of complete motor replacements. A sample batch of five rack sections was ordered, inspected independently by the contractor’s engineer, and physically test-fitted on a gate mock-up before the full production order was confirmed. The complete supply of 84 individual 1,000 mm rack sections was manufactured, inspected, and delivered to the Leeds site within 33 working days, accompanied by full batch documentation.
Twelve months after commissioning, the contractor reported zero tooth wear indicators across all fourteen gates, no surface corrosion despite one of the wetter winter seasons in recent memory, and an average motor current reduction of 12% compared to pre-replacement baselines — a direct result of improved meshing efficiency with correctly profiled, dimensionally accurate rack teeth. The site operator subsequently requested a standing supply agreement to maintain strategic stock levels for ongoing planned maintenance.
“Dimensional accuracy on these M4 racks is genuinely on another level compared to what we’ve sourced elsewhere. They dropped straight in on all six motor heads — no shimming, no modification, no surprises. Delivery was quicker than expected and the inspection paperwork was complete and clearly presented.”
James R. — Gate Automation Contractor
Surrey & South East England
“We manage 23 sites across Scotland and Northern England and needed a consistent source for non-standard bore pinions. Ever Power’s ability to quote custom specifications within 24 hours genuinely saved us when an emergency replacement was needed at a sensitive NHS facility. The process was smooth from enquiry to delivery.”
Karen M. — Facilities Manager
NHS Property Services, Scotland
“The nylon helical racks on our residential estate project in Solihull were a perfect specification. Extremely quiet, zero corrosion after 18 months of British weather, and not a single call-back from any of the twelve installations. Price per unit was competitive and the customs documentation was clear and complete.”
David T. — Director
Premium Gate & Barrier Solutions Ltd., Birmingham
Ever Power Manufacturing & Custom Engineering Capability
Ever Power operates a purpose-built precision gear manufacturing facility with a dedicated rack and pinion production line staffed entirely by personnel whose professional background is in gear power transmission — not general metalworking. This single-discipline focus is what enables us to offer the level of customisation that general engineering suppliers cannot: non-standard modules, complex pinion bore geometries with keyways and circlip grooves, unusual rack section lengths, and hybrid configurations such as steel-bodied racks with polymer tooth inserts for vibration damping. Every custom project is managed from initial drawing creation through to final dimensional inspection by engineers who understand gear geometry deeply, not just superficially.
For UK B2B clients, this depth of customisation capability has several direct commercial applications. Replacement parts for legacy gate systems — where the original European supplier has discontinued the product line, been acquired, or simply gone out of business — can be reverse-engineered from physical samples or worn components, often with a turnaround time of 15 working days for straightforward profiles. OEM gate motor manufacturers developing new products can engage our engineering team to design proprietary rack geometries under NDA, with prototype runs typically achievable within three to four weeks of drawing approval. Volume buyers including national distributors, multi-site facilities management organisations, and security systems integrators can negotiate blanket purchase agreements with phased delivery schedules that eliminate stockholding risk while guaranteeing component availability against agreed lead times.
Production lead times for new mould tools and bespoke profiles run between 25 and 35 working days from drawing approval. Modifications to existing profiles — different bore diameters, added keyways, modified face widths — are typically achievable in 10 to 15 working days. We actively encourage UK clients to open a conversation about their timeline requirements at the earliest stage of a project, because aligning production scheduling to suit installation programmes is genuinely possible when the dialogue starts early enough. Call-outs at the last minute invariably create difficulty; early engagement invariably resolves it.
🛠 Custom Project Capability Summary
| Custom Service | Lead Time | Min. Order |
|---|---|---|
| Custom bore / keyway on standard profile | 10–15 working days | Discuss |
| Non-standard rack length (cut to length) | 7–12 working days | 5 pcs |
| Reverse-engineering from physical sample | 15–20 working days | 10 pcs |
| New mould / bespoke profile | 25–35 working days | OEM qty |
| Alternative surface treatment (e.g. hot-dip galv.) | +5–7 working days | Discuss |
Serving Gate Automation Professionals Across the United Kingdom
The United Kingdom’s gate automation market is one of the most technically sophisticated and commercially demanding in Europe. Shaped by a combination of high residential expectations for security and aesthetic quality, stringent commercial and public sector access control requirements, and a mature network of specialist contractors with high technical standards, the UK market demands components that perform reliably and consistently — not components that merely appear to meet specification on a data sheet. From the dense urban environments of London, Manchester, and Glasgow to the sprawling agricultural and industrial sites of Lincolnshire, the Scottish Highlands, and Northern Ireland, the variety of gate applications across the UK is extraordinary in its range of duty profiles, environmental challenges, and mechanical demands.
A consistent challenge for UK gate automation contractors and procurement managers is navigating the trade-off between component quality and the cost pressure of competitive tender pricing. Ungraded steel racks imported without material or dimensional certification appear cost-effective at point of purchase. In practice, their true cost — accumulated across call-back visits, warranty claims, expedited emergency replacements, and the consequential effect on commercial reputation — typically exceeds the initial saving within eighteen to twenty-four months of operation. Specifying certified, dimensionally verified gear racks with documented heat treatment and surface finishing processes is, measured over any realistic service life horizon, the lower-cost commercial decision.
We supply directly to UK trade accounts — gate automation installation contractors, access control systems integrators, national facilities management organisations, maintenance and repair operators, and OEM gate system manufacturers — with delivery to all mainland England, Scotland, and Wales postcode areas. Clients in Northern Ireland and the Scottish islands are invited to contact us directly regarding routing and lead time options. All trade quotations and invoices are issued in GBP, pricing is held stable for agreed contract periods, and dedicated account management is available for clients placing regular volume orders. We consider ourselves not just a component supplier but a long-term engineering partner to the UK gate automation industry.
Frequently Asked Questions
Ever Power — Precision Rack & Pinion for Gate Automation
Ready to Specify the Right Sliding Gate Gear Rack for Your UK Project?
Share your gate weight, motor model, duty cycle, and required quantities. Custom sizes, urgent quotations, and standing supply agreements all available for UK trade accounts.
Get a Quote Now — [email protected]
